DeepMind Control Suite

We use dm_control==1.0.38 and mujoco==3.6.0 as the codebase. See https://github.com/deepmind/dm_control/tree/1.0.38 and https://github.com/google-deepmind/mujoco/tree/3.6.0

The domain_name and task_name for suite.load function are converted into DomainNameTaskName-v1 in envpool, e.g.,

dm_raw_env = suite.load("hopper", "hop")
# equal to
envpool_env = envpool.make_dm("HopperHop-v1", num_envs=1)

# if _ is in the original name
suite.load("ball_in_cup", "catch")
# equal to
envpool.make_dm("BallInCupCatch-v1", num_envs=1)

EnvPool implements the suite.ALL_TASKS task set from dm_control==1.0.38.

Render Compare

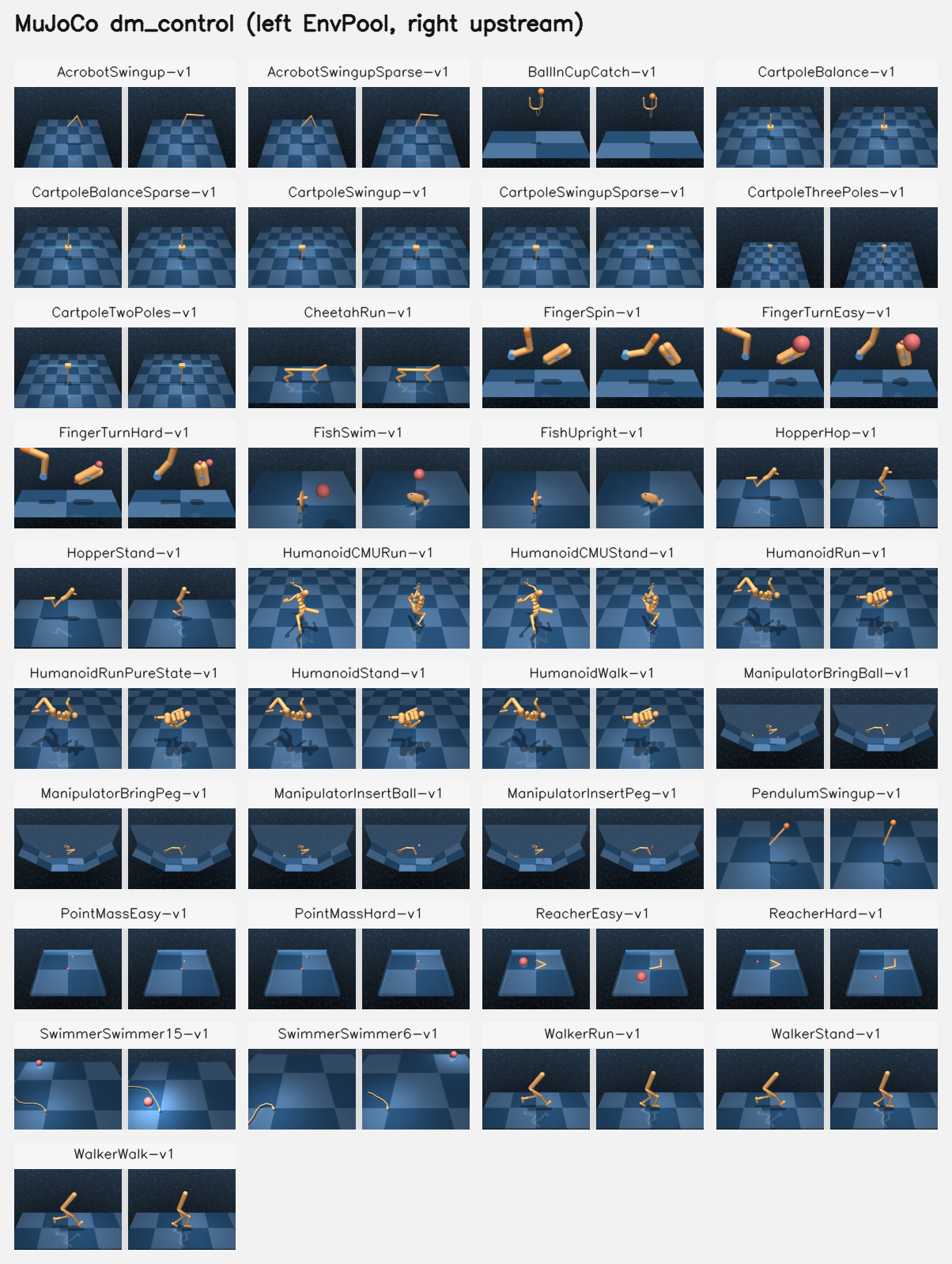

Representative first-frame compares for DeepMind Control Suite tasks that support rendering. In each panel, EnvPool is on the left and upstream dm_control is on the right.

../_images/mujoco_dmc_official_compare.png

AcrobotSwingup-v1, AcrobotSwingupSparse-v1

dm_control suite acrobot source code

Observation spec: a namedtuple with two keys: orientations (4), velocity (2);
Action spec: (1), with range [-1, 1];
frame_skip: 1;
max_episode_stes: 1000;

BallInCupCatch-v1

dm_control suite ball-in-cup source code

Observation spec: a namedtuple with two keys: position (4) and velocity (4);
Action spec: (2), with range [-1, 1];
frame_skip: 1;
max_episode_steps: 1000;

CartpoleBalance-v1, CartpoleBalanceSparse-v1, CartpoleSwingup-v1, CartpoleSwingupSparse-v1, CartpoleTwoPoles-v1, CartpoleThreePoles-v1

dm_control suite cartpole source code

Observation spec: a namedtuple with two keys: position (5 for two_poles, 7 for three_poles, 3 for others), velocity (3 for two_poles, 4 for three_poles, 2 for others);
Action spec: (1), with range [-1, 1];
frame_skip: 1;
max_episode_stes: 1000;

CheetahRun-v1

dm_control suite cheetah source code

Observation spec: a namedtuple with two keys: position (8) and velocity (9);
Action spec: (6), with range [-1, 1];
frame_skip: 1;
max_episode_steps: 1000;

DogFetch-v1, DogRun-v1, DogStand-v1, DogTrot-v1, DogWalk-v1

dm_control suite dog source code

Observation spec: a namedtuple with eleven keys: joint_angles (73), joint_velocites (73), torso_pelvis_height (2), z_projection (9), torso_com_velocity (3), inertial_sensors (9), foot_forces (12), touch_sensors (4), actuator_state (38), ball_state (6) and target_position (3);
Action spec: (38), with range [-1, 1];
frame_skip: 3;
max_episode_steps: 1000;

Note

The observation keys ball_state and target_position are only meaningful in DogFetch-v1.

FingerSpin-v1, FingerTurnEasy-v1, FingerTurnHard-v1

dm_control suite finger source code

Observation spec: a namedtuple with five keys: position (4), velocity (3), touch (2), target_position (2), dist_to_target ();
Action spec: (2), with range [-1, 1];
frame_skip: 2;
max_episode_steps: 1000;

Note

The observation keys target_position and dist_to_target are only available in FingerTurnEasy-v1 and FingerTurnHard-v1 tasks. Their values are meaningless in FingerSpin-v1.

FishSwim-v1, FishUpright-v1

dm_control suite fish source code

Observation spec: a namedtuple with four keys: joint_angles (7), upright (), target (3), velocity (13);
Action spec: (5), with range [-1, 1];
frame_skip: 10;
max_episode_steps: 1000;

Note

The observation key target is only available in FishSwim-v1 task. The value is meaningless in FishUpright-v1.

HopperStand-v1, HopperHop-v1

dm_control suite hopper source code

Observation spec: a namedtuple with three keys: position (6), velocity (7), touch (2);
Action spec: (4), with range [-1, 1];
frame_skip: 4;
max_episode_steps: 1000;

ManipulatorBringBall-v1, ManipulatorBringPeg-v1, ManipulatorInsertBall-v1, ManipulatorInsertPeg-v1

dm_control suite manipulator source code

Observation spec: a namedtuple with three keys: arm_pos (8,2), arm_vel (8), touch (5), hand_pos (4), object_pos (4), object_vel (3), target_pos (4);
Action spec: (5), with range [-1, 1];
frame_skip: 10;
max_episode_steps: 1000;

HumanoidStand-v1, HumanoidWalk-v1, HumanoidRun-v1, HumanoidRunPureState-v1

dm_control suite humanoid source code

Observation spec: a namedtuple with seven keys: joint_angles (21), head_height (), extremities (12), torso_vertical (3), com_velocity (3), position (28), and velocity (27);
Action spec: (21), with range [-1, 1];
frame_skip: 5;
max_episode_steps: 1000;

Note

The observation keys joint_angles, head_height, extremities, torso_vertical and com_velocity are only available in HumanoidStand-v1, HumanoidWalk-v1 and HumanoidRun-v1. The observation keys position are only available in HumanoidRunPureState-v1 tasks.

HumanoidCMUStand-v1, HumanoidCMUWalk-v1, HumanoidCMURun-v1

dm_control suite humanoid-CMU source code

Observation spec: a namedtuple with six keys: joint_angles (56), head_height (), extremities (12), torso_vertical (3), com_velocity (3) and velocity (62);
Action spec: (56), with range [-1, 1];
frame_skip: 10;
max_episode_steps: 1000;

LqrLqr21-v1, LqrLqr62-v1

dm_control suite LQR source code

Observation spec: a namedtuple with two keys: position (2 for LqrLqr21, 6 for LqrLqr62) and velocity (2 for LqrLqr21, 6 for LqrLqr62);
Action spec: (1 for LqrLqr21, 2 for LqrLqr62), with range [-1e10, 1e10];
frame_skip: 1;
max_episode_steps: 1000;

PendulumSwingup-v1

dm_control suite pendulum source code

Observation spec: a namedtuple with three keys: orientations (2), velocity (1);
Action spec: (1), with range [-1, 1];
frame_skip: 1;
max_episode_stes: 1000;

PointMassEasy-v1, PointMassHard-v1

dm_control suite point-mass source code

Observation spec: a namedtuple with three keys: position (2), velocity (2);
Action spec: (1), with range [-1, 1];
frame_skip: 1;
max_episode_stes: 1000;

QuadrupedEscape-v1, QuadrupedFetch-v1, QuadrupedRun-v1, QuadrupedWalk-v1

dm_control suite quadruped source code

Observation spec: a namedtuple with nine keys: egocentric_state (44), torso_velocity (3), torso_upright (), imu (6), force_torque (24), origin (3), rangefinder (20), ball_state (9) and target_position (3);
Action spec: (12), with per-joint ranges repeated as [-1, 1], [-1, 1.1] and [-0.8, 0.8];
frame_skip: 4;
max_episode_steps: 1000;

Note

The observation keys origin and rangefinder are only meaningful in QuadrupedEscape-v1. The observation keys ball_state and target_position are only meaningful in QuadrupedFetch-v1.

ReacherEasy-v1, ReacherHard-v1

dm_control suite reacher source code

Observation spec: a namedtuple with three keys: position (2), to_target (2) and velocity (2);
Action spec: (2), with range [-1, 1];
frame_skip: 1;
max_episode_steps: 1000;

SwimmerSwimmer6-v1, SwimmerSwimmer15-v1

dm_control suite swimmer source code

Observation spec: a namedtuple with three keys: joints (5 for swimmer6, 14 for swimmer15), to_target (2), and body_velocities (18 for swimmer6, 45 for swimmer15);
Action spec: (5 for swimmer6, 14 for swimmer15), with range [-1, 1];
frame_skip: 15;
max_episode_steps: 1000;

StackerStack2-v1, StackerStack4-v1

dm_control suite stacker source code

Observation spec: a namedtuple with seven keys: arm_pos (8,2), arm_vel (8), touch (5), hand_pos (4), box_pos (2,4 for StackerStack2, 4,4 for StackerStack4), box_vel (6 for StackerStack2, 12 for StackerStack4) and target_pos (2);
Action spec: (5), with range [-1, 1];
frame_skip: 10;
max_episode_steps: 1000;

WalkerRun-v1, WalkerStand-v1, WalkerWalk-v1

dm_control suite walker source code

Observation spec: a namedtuple with three keys: orientations (14), height () and velocity (9);
Action spec: (6), with range [-1, 1];
frame_skip: 10;
max_episode_steps: 1000;
