Highway

EnvPool supports the tasks registered by highway-env. The implementation is native C++ inside EnvPool; it does not call back into the upstream Python environment at runtime. highway-v0 and highway-fast-v0 use the aligned straight-road C++ backend, and the remaining upstream IDs use native EnvPool task backends with matching public observation/action spaces.

Render Compare

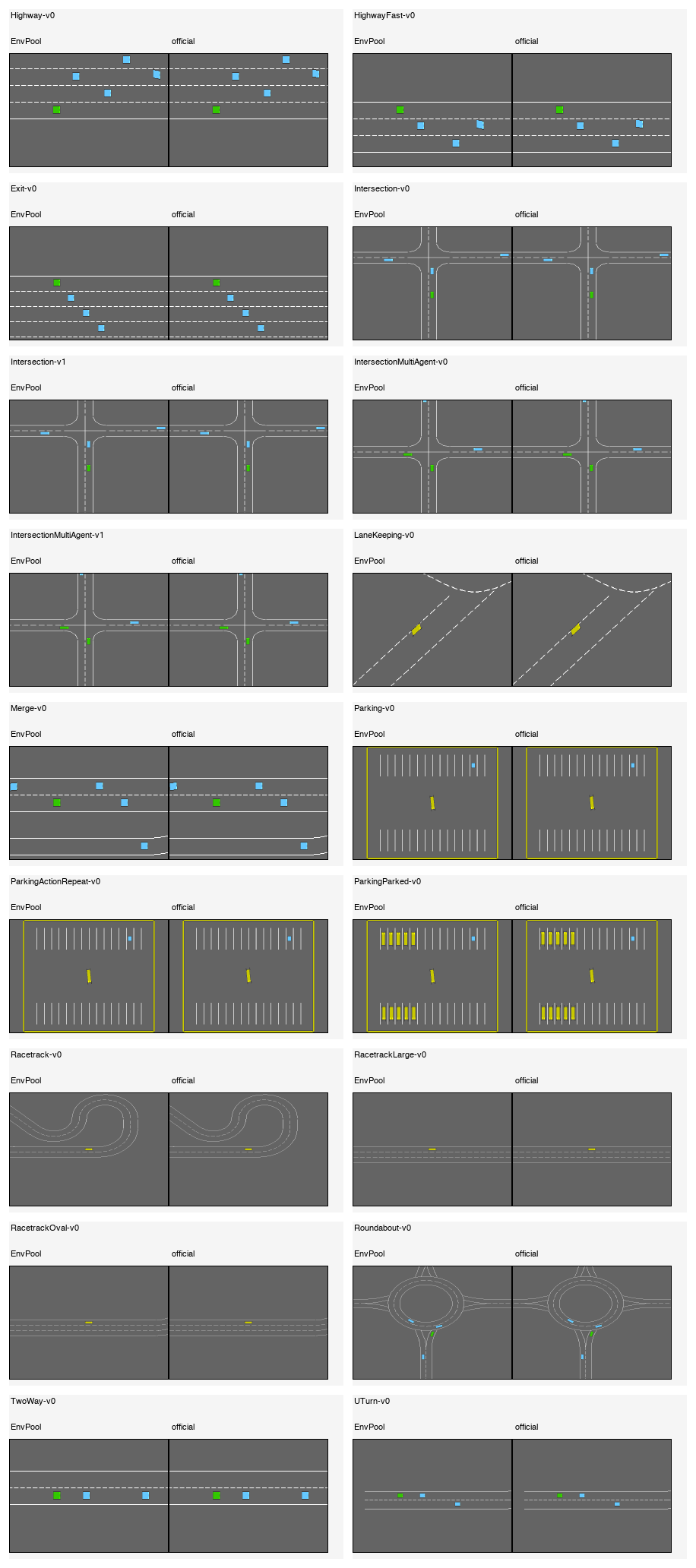

Representative render compares for all upstream Highway tasks after reset and two idle/default actions. Each panel shows EnvPool on the left and the official highway-env pygame renderer on the right.

../_images/highway_official_compare.png

Options

  • task_id (str): any task listed in Available Tasks;

  • num_envs (int): how many environments you would like to create;

  • batch_size (int): the expected batch size for return result, default to num_envs;

  • num_threads (int): the maximum thread number for executing the actual env.step, default to batch_size;

  • seed (int | Sequence[int]): the environment seed. When a sequence is provided, it must contain exactly one seed per environment. Default to 42;

Highway-v0 and HighwayFast-v0 additionally expose these straight-road options:

  • max_episode_steps (int): the maximum number of policy decisions in one episode. Highway-v0 defaults to 40 and HighwayFast-v0 defaults to 30;

  • lanes_count (int): number of parallel lanes, default to 4;

  • vehicles_count (int): number of traffic vehicles, default to 50;

  • observation_vehicles_count (int): number of rows in the kinematic observation, default to 5;

  • simulation_frequency (int): physics update frequency in Hertz, default to 15;

  • policy_frequency (int): agent action frequency in Hertz, default to 1;

  • initial_lane_id (int): fixed ego start lane, or -1 for a random start lane;

  • ego_spacing (float) and vehicles_density (float): initial traffic spacing controls;

  • collision_reward (float), right_lane_reward (float), high_speed_reward (float), reward_speed_low (float), reward_speed_high (float), and normalize_reward (bool): reward shaping options;

  • offroad_terminal (bool): terminate when the ego vehicle leaves the road, default to False;

  • screen_width (int), screen_height (int), centering_position_x (float), centering_position_y (float), and scaling (float): renderer camera options.

Observation Space

For Highway-v0 and HighwayFast-v0, the Gymnasium wrapper returns a (observation_vehicles_count, 5) float array. Columns follow upstream’s kinematic observation convention: presence, x, y, vx, and vy. Coordinates are centered on the ego vehicle and normalized to roughly [-1, 1].

These tasks also expose two info fields:

  • info["speed"]: ego vehicle speed in meters per second;

  • info["crashed"]: whether the ego vehicle has crashed.

Action Space

For Highway-v0 and HighwayFast-v0, the action space is discrete with five meta-actions:

  • 0: LANE_LEFT

  • 1: IDLE

  • 2: LANE_RIGHT

  • 3: FASTER

  • 4: SLOWER

Available Tasks

  • Highway-v0; alias: highway-v0

  • HighwayFast-v0; alias: highway-fast-v0

  • Exit-v0; alias: exit-v0

  • Intersection-v0; alias: intersection-v0

  • Intersection-v1; alias: intersection-v1

  • IntersectionMultiAgent-v0; alias: intersection-multi-agent-v0

  • IntersectionMultiAgent-v1; alias: intersection-multi-agent-v1

  • LaneKeeping-v0; alias: lane-keeping-v0

  • Merge-v0; alias: merge-v0

  • Parking-v0; alias: parking-v0

  • ParkingActionRepeat-v0; alias: parking-ActionRepeat-v0

  • ParkingParked-v0; alias: parking-parked-v0

  • Racetrack-v0; alias: racetrack-v0

  • RacetrackLarge-v0; alias: racetrack-large-v0

  • RacetrackOval-v0; alias: racetrack-oval-v0

  • Roundabout-v0; alias: roundabout-v0

  • TwoWay-v0; alias: two-way-v0

  • UTurn-v0; alias: u-turn-v0

Correctness Tests

The test suite uses these pass standards:

  • Native straight-road rollout determinism: two EnvPool instances with the same seed and action sequence must match, while a different seed must change the rollout;

  • Full-task native determinism: every upstream registered ID is reset and stepped for multiple policy decisions in two same-seed EnvPool instances; observation trees, rewards, done flags, info trees, and renders must match bitwise;

  • Native controlled-vehicle alignment: no-traffic Highway-v0 and HighwayFast-v0 observations are checked bitwise against official highway-env for several road and policy-frequency setups. Rewards, terminated, truncated, info["speed"], and info["crashed"] are checked exactly at EnvPool’s exported dtype;

  • Native render alignment: multi-step no-traffic RGB renders and representative reset traffic renders are checked bitwise against the official pygame renderer. Rendering must also be batched and state-invariant;

  • Full upstream registry coverage: the test pins the 18 registered upstream IDs, checks EnvPool’s Gymnasium observation/action spaces against an independent official highway-env oracle, creates EnvPool through each upstream ID/alias, resets, steps more than once, and renders more than once;

  • Implementation boundary: tests and doc tooling may import official highway-env as an oracle, but the EnvPool implementation is built as C++ code and has no official Python-environment bridge.
