MarlGrid

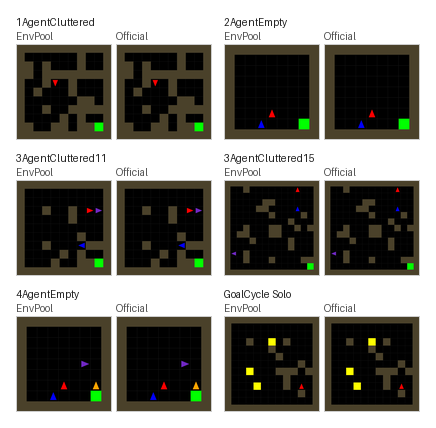

We use kandouss/marlgrid commit e88c40bad07653575ac11fe2f3a115e4de3d13e9 as the reference implementation. MarlGrid is a multi-agent gridworld based on the original MiniGrid codebase. Its GoalCycle environments were used in the 2021 paper by Ndousse and coauthors, Emergent Social Learning via Multi-agent Reinforcement Learning.

Options

• task_id (str): see the available tasks below;

• num_envs (int): how many environments you would like to create;

• batch_size (int): the expected batch size for returned environments, default to num_envs;

• num_threads (int): the maximum thread number for executing the actual env.step, default to batch_size;

• seed (int | Sequence[int]): the environment seed. When a sequence is provided, it must contain exactly one seed per environment. Default to 42;

• max_num_players (int): maximum number of players in one environment. Each registered task defaults this to its number of agents;

• prestige_coloring (bool): use the kandouss/marlgrid prestige cue for agent rendering. This option defaults to False to preserve the fixed agent colors used by existing tasks. When enabled, positive rewards move an agent color from red toward blue, negative rewards reset it to red, and prestige decays after each active agent step;

• prestige_beta (float): per-step prestige decay factor, default to 0.95;

• prestige_scale (float): reward-history scale used when mapping prestige to color, default to 2.0;

• observation_format (str): observation representation. "pixels" (default) returns the existing RGB partial view, "matrix" returns an egocentric semantic partial view, and "full_matrix" returns the world-oriented semantic grid.

Observation Space

MarlGrid returns one uint8 observation per player. Its shape depends on observation_format:

• pixels: (view_tile_size * view_size, view_tile_size * view_size, 3). This is the existing RGB partial view. The default registered tasks use view_tile_size=8;

• matrix: (view_size, view_size, 13). This is the agent’s egocentric partial view. Occluded cells and every cell for an inactive player are all zero;

• full_matrix: (grid_size, grid_size, 13). This is the global grid in world coordinates. Every cell for an inactive player is zero.

For both matrix formats, channels are:

• 0–4: one-hot empty, wall, goal, bonus, and lava base tiles;

• 5: agent presence;

• 6–8: agent red, green, and blue values. These contain the prestige color when prestige_coloring=True;

• 9–12: one-hot agent direction: right, down, left, and up.

One visible base-tile channel and every active one-hot channel use value 255. An agent can occupy a base object, so base-tile and agent channels may both be set. Directions in matrix use the rotated egocentric coordinates; directions in full_matrix use world coordinates.

Player metadata is returned under info["players"]:

• id: player index inside the environment;

• done: per-player completion flag;

• active: whether the player currently renders and acts;

• pos: player position in the full grid;

• dir: player direction in [0, 3].

Action Space

Actions are per-player discrete values in [0, 6]:

• 0: turn left;

• 1: turn right;

• 2: move forward;

• 3: pick up;

• 4: drop;

• 5: toggle / interact;

• 6: done.

Multi-agent tasks accept EnvPool’s player-shaped action format, for example:

import envpool
import numpy as np

env = envpool.make_gymnasium("MarlGrid-3AgentCluttered11x11-v0", num_envs=2)
obs, info = env.reset()
obs, reward, terminated, truncated, info = env.step({
    "players": {
        "env_id": info["players"]["env_id"],
        "action": np.full(info["players"]["env_id"].shape, 2, dtype=np.int32),
    }
})

Available Tasks

Task IDs follow the pinned upstream registry. Note that upstream names MarlGrid-1AgentCluttered15x15-v0 as 15x15 even though that pinned registry config uses grid_size=11.

• MarlGrid-1AgentCluttered15x15-v0

• MarlGrid-3AgentCluttered11x11-v0

• MarlGrid-3AgentCluttered15x15-v0

• MarlGrid-2AgentEmpty9x9-v0

• MarlGrid-3AgentEmpty9x9-v0

• MarlGrid-4AgentEmpty9x9-v0

• Goalcycle-demo-solo-v0
